127-90 Serie Broken Bridge Hebelschiebetür

T127-90 lifting sliding door, integrating various functions such as conventional sliding door, lifting sliding door, electric sliding door, usw., suitable for sliding doors in living rooms, ocean view villas, etc

Highlights

Multi functional opening methods: can be used as regular sliding doors, lifting sliding doors, and electric sliding doors

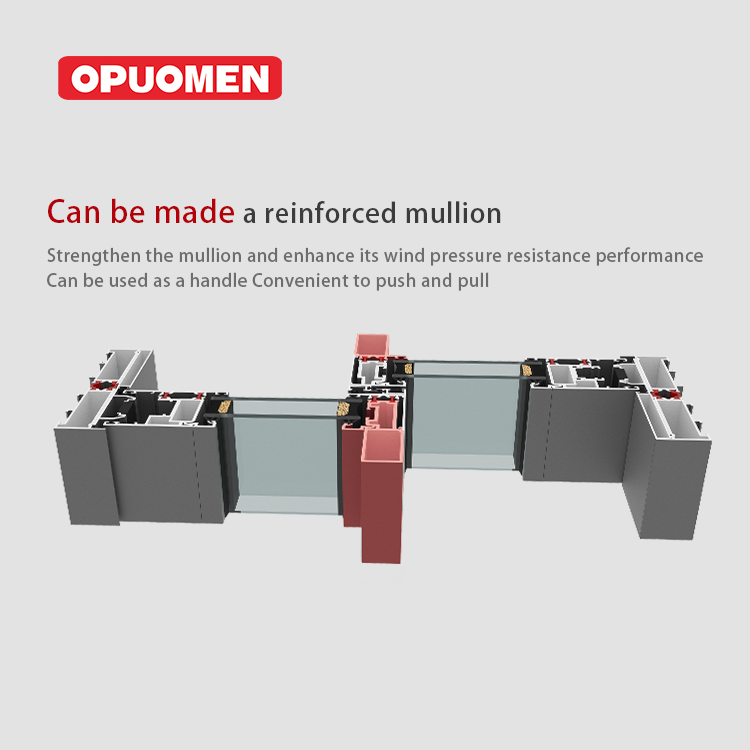

Flexible push-pull design: The opening fan can be locked in any position, and the optional strengthening of the vertical mullion is available

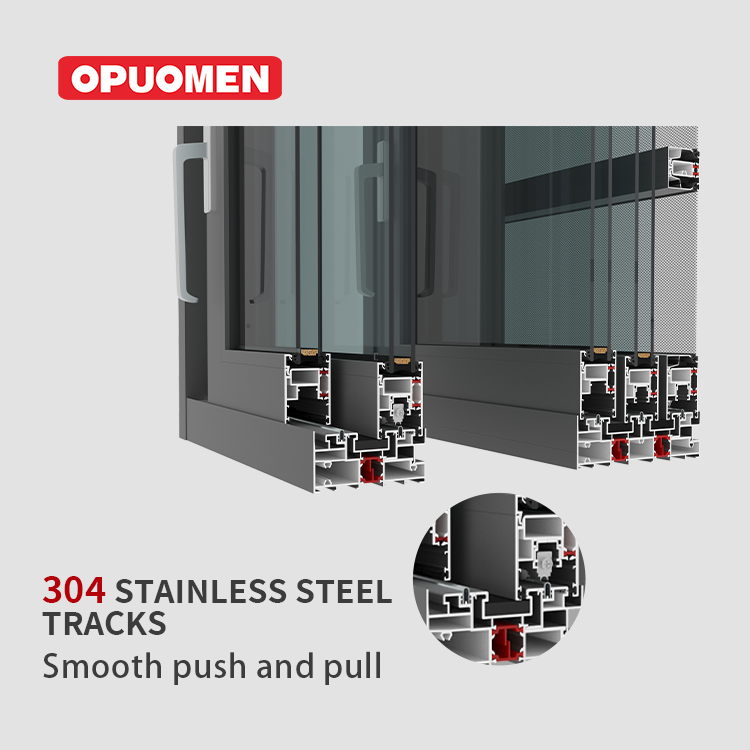

304 stainless steel track: push-pull silent, smooth, dauerhaft

Enhance anti swing pulley: Copper material pulley, strong load-bearing capacity, anti swing

T-shaped nylon insulation strip: T-shaped nylon insulation strip design effectively blocks heat transfer

Ladder style hidden drainage structure: Ladder style hidden drainage design, fast drainage speed

Super strong wind resistance performance: With high-strength frame and scientific structural design, it has super strong wind resistance performance

Erfahren Sie mehr

Produktparameter

Material	6063-T5 native aluminum profile, wall thickness 2.5mm

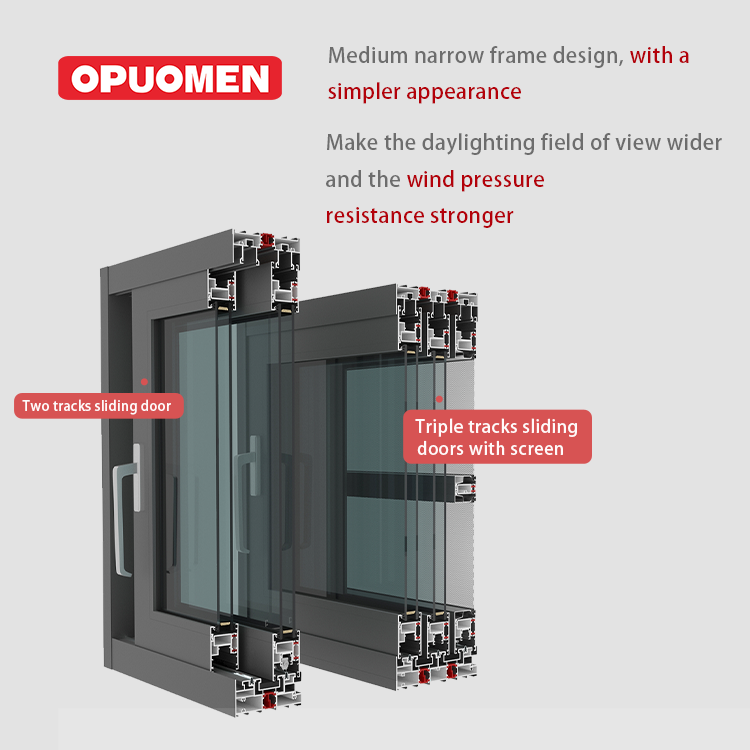

width	Occupying a wall width of 127mm-191mm (two rail/three rail), with a visible width of 90mm for doors and windows
cavity	Multi cavity structure design

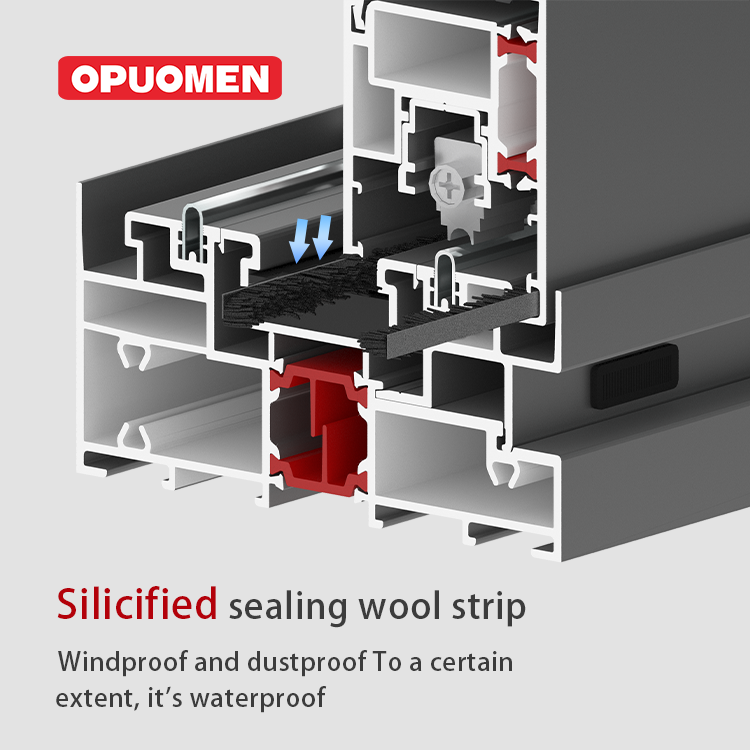

Sealing structure	The lifting fan adopts EPDM sealing strip, which has better sealing performance and T-shaped nylon insulation strip, effectively blocking heat transfer
Gauze net	Hidden folding mesh
Glas	5+20+5 double-layer insulated tempered glass, Xinyi tempered glass original sheet
Opening method	The opening methods include two track, three track with yarn, one fixed and one movable, one fixed and two movable, two fixed and two movable, etc
Drainage	Ladder style hidden drainage structure
Crimping	Square pressure line
Hardware	Famous brand hardware
colour	Light luxury gray, fluorocarbon coffee, fluorocarbon black, usw., Anpassbare Farben verfügbar
Warenzeichen	Opuo
Herkunft	Foshan, China
MOQ	2 Quadratmeter

Sich in Verbindung setzen

*Wir respektieren Ihre Vertraulichkeit und alle Informationen sind geschützt.

Produktmerkmale

.Level 6 water tightness performance

.Good sound insulation effect at level 4

.Level 8 airtightness performance

.Level 9 wind pressure resistance performance

.Level 8 insulation performance

.Anti theft and security performance
