TS129 bridge cut six track sliding window

TS129 bridge cut six track sliding window adopts innovative bridge cut aluminum profiles and multi track design, creating excellent sound insulation, 熱断熱, and waterproof performance. The large opening area brings a wide view and smooth ventilation experience, making it an ideal choice for modern homes.

ハイライト

Broken bridge insulation: using multi cavity broken bridge aluminum profiles to effectively block heat transfer.

Six track design: Six track load-bearing design, smooth pushing and pulling, strong load-bearing capacity.

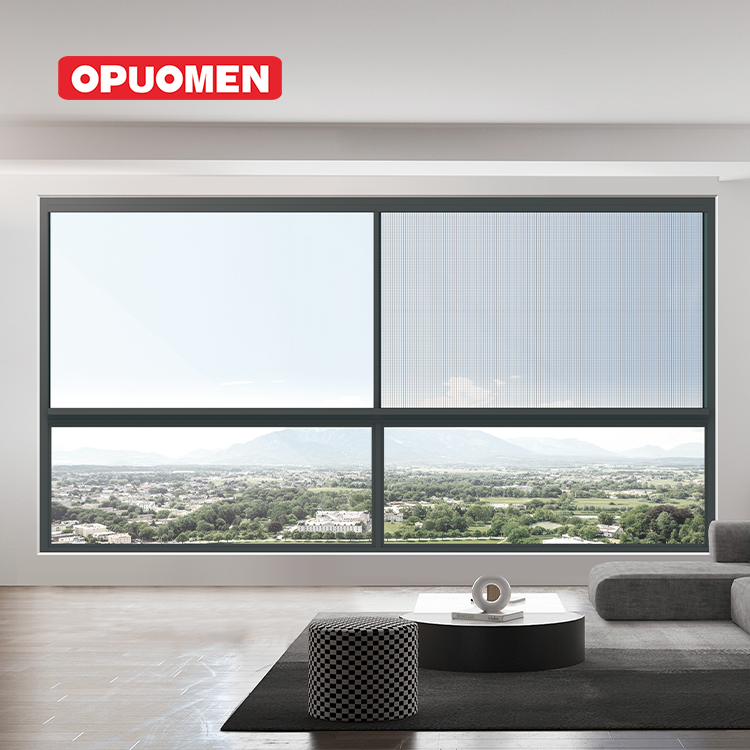

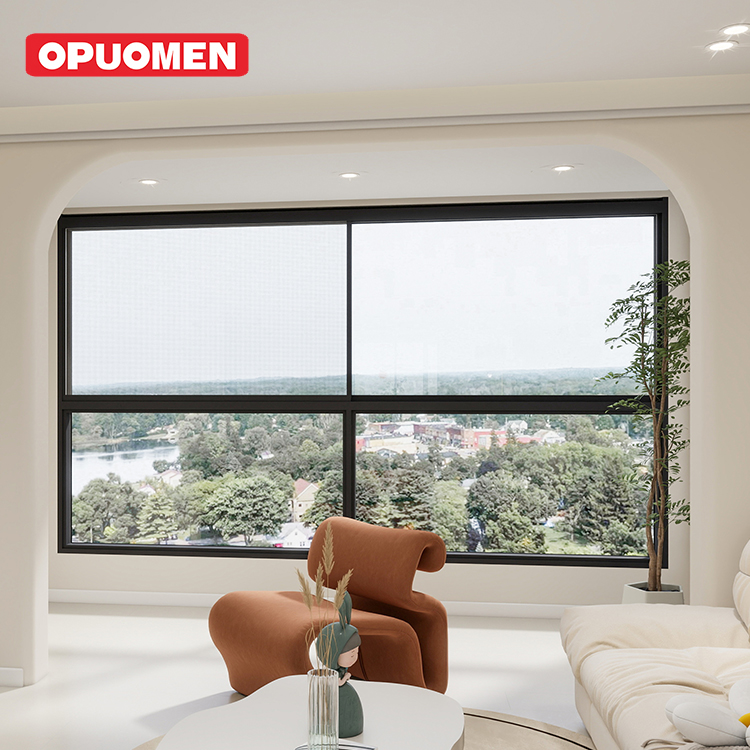

Large opening: Narrow border design, large opening area, providing a wide field of view and smooth ventilation experience.

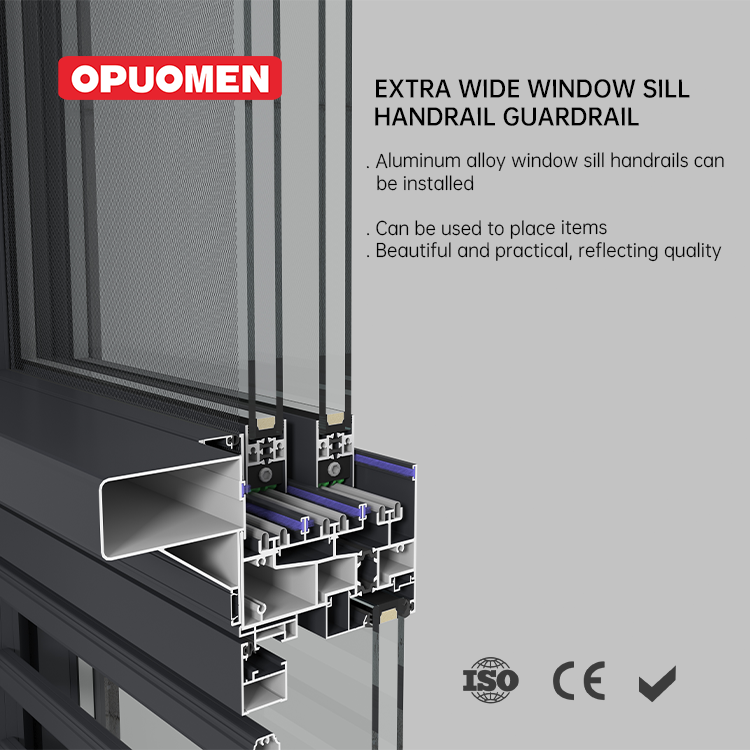

Optional armrest: Aluminum alloy armrests can be added according to needs to place beautiful and practical items.

Sound insulation and noise reduction: The integrated bending hollow aluminum strip process and multiple sealing designs effectively block external noise.

High sealing performance: Multiple sealing structure design effectively prevents rainwater infiltration.

Safe and stable: High strength aluminum alloy profiles and anti-theft design enhance the safety factor of windows.

美しくファッショナブル: With a simple and atmospheric design style, multiple colors are available to meet different architectural styles and decoration needs.

Multi functional application: Suitable for various scenarios such as residential window sealing, office buildings, ホテル, 等.

もっと詳しく知る

製品パラメーター

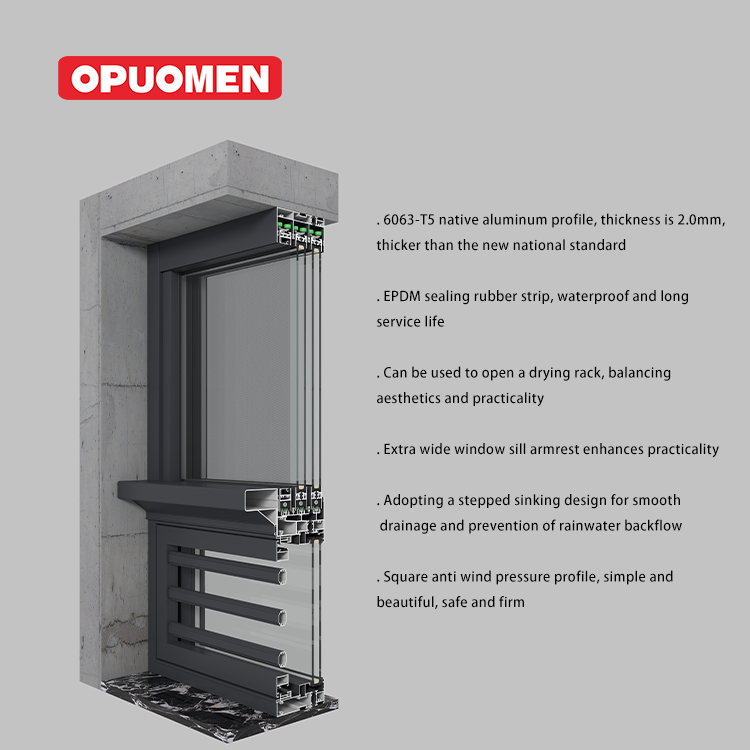

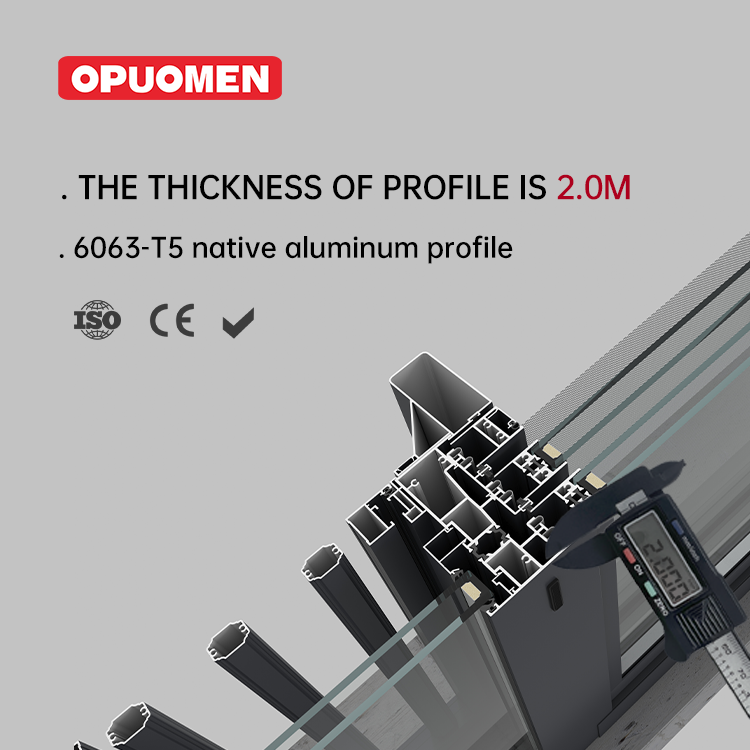

材料	6063-T5 native aluminum profile, with a new national standard wall thickness of 2.0mm
width	Wall width of 129mm, light width of 25mm, hook width of 30mm
cavity	Broken bridge six track push-pull design, can be equipped with mesh inside or outside, single fan double track anti swing pulley

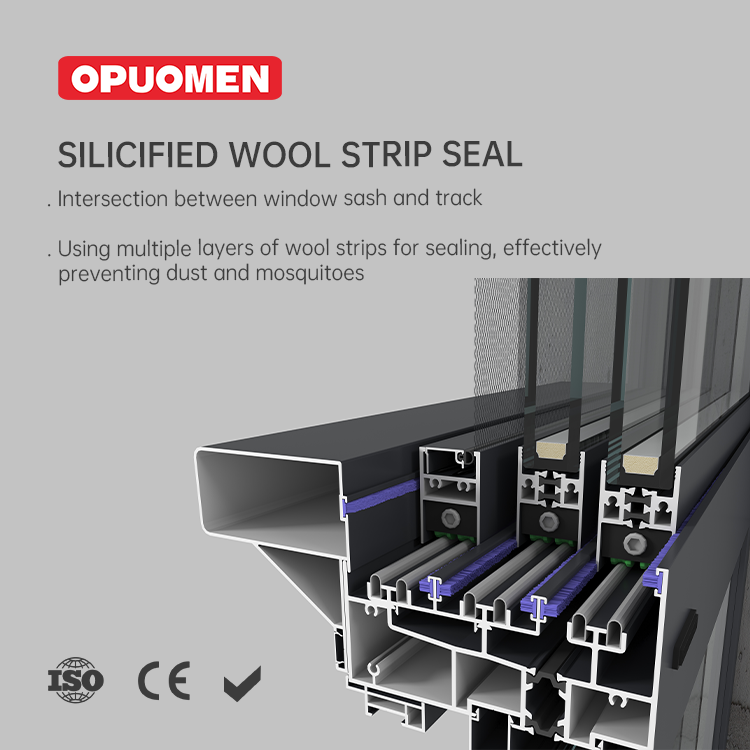

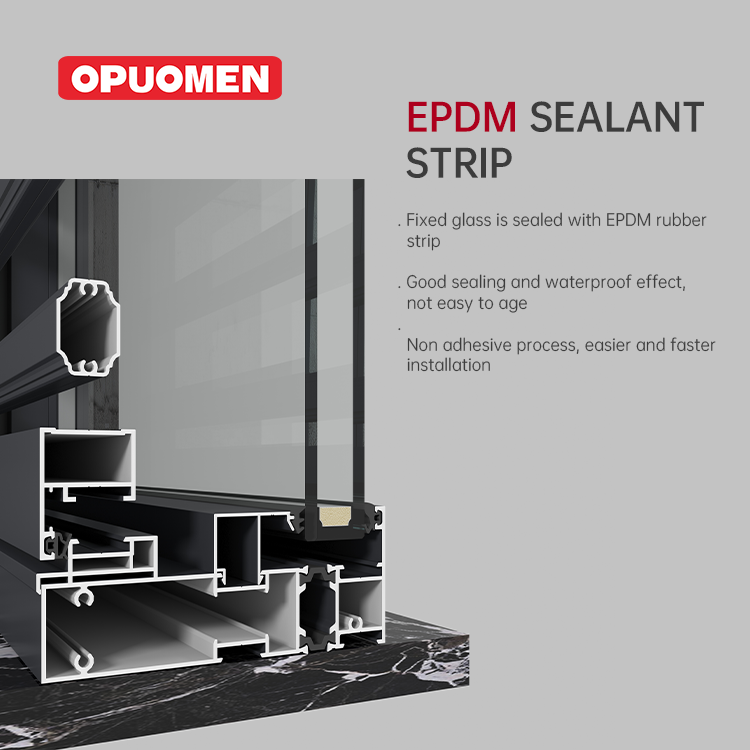

Sealing structure	EPDM sealing strip, embedded frame fan structure
Gauze net	Can be made of 304 stainless steel mesh and nylon high transparency mesh
ガラス	5+15A+5 double-layer insulated tempered glass, nylon high transparency mesh

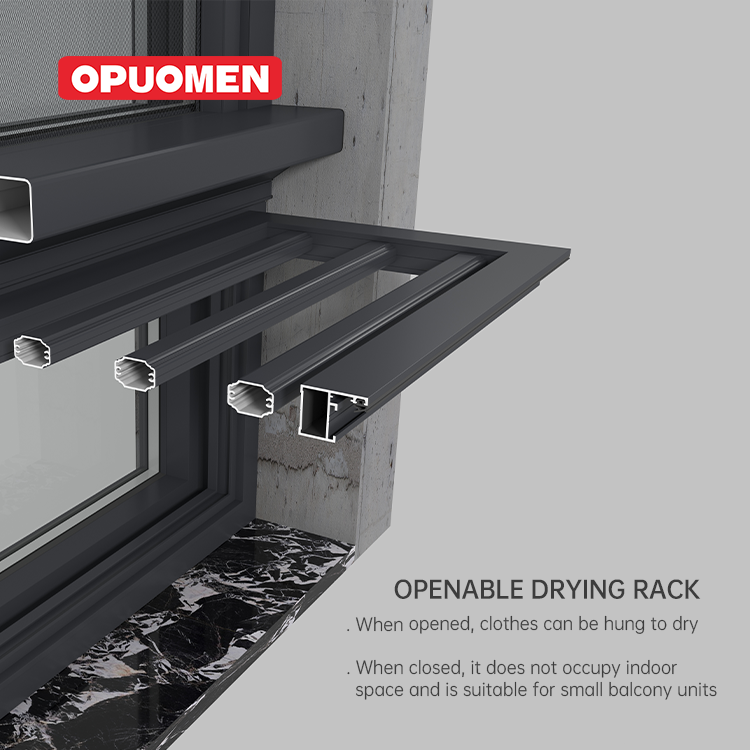

Opening method	Push pull opening method, can be used to open the drying rack

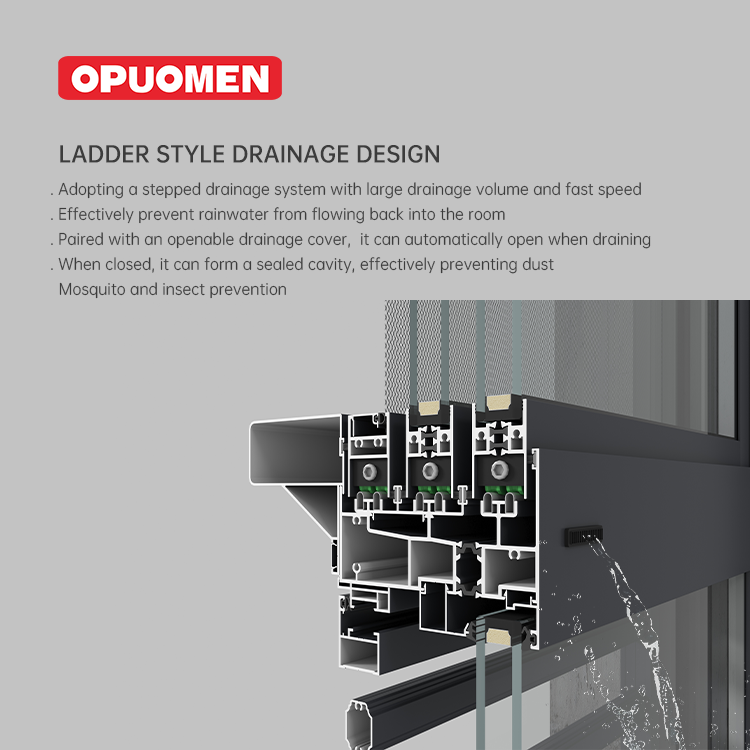

Drainage	Adopting a stepped sinking design for smooth drainage and prevention of rainwater backflow
Crimping	Square wind resistance line
ハードウェア	Side hidden automatic lock
colour	Light luxury gray, fluorocarbon coffee, fluorocarbon black, 等. Light luxury white can be customized in color
商標	オプオ
起源	フォシャン, 中国
Moq	2 平方メートル
