Picking out high-performance aluminum folding doors is about way more than just finding a style that looks good in a brochure. If you want a project to actually hold up over time, you’ve got to look under the hood at the specs that handle the heavy lifting—things like how the tracks deal with brutal wind or how the rollers feel after five years of use.
We’ll break down how panel sizes shift your budget, how to get those clean, trip-free floor transitions, and what really goes into a door that stays smooth and dry, no matter the weather.
Industry Standards: Defining “High Performance”
To qualify as “high-performance,” an aluminum folding door must transcend aesthetics and meet rigorous structural benchmarks. In the industry sector, these metrics are the primary safeguards against liability and post-installation failure.
Structural Integrity & Wind Resistance
Systems must withstand extreme pressure without permanent deformation. Look for a 1200Pa Class A3 rating or the North American DP-70 equivalent, capable of resisting wind speeds up to 165 mph. This is critical for high-rise applications or coastal projects where gust loads are unpredictable.
Water Tightness & Weather Sealing
Effective drainage is non-negotiable. Aim for 600Pa Class 9A watertightness. High-performance units utilize rebated bottom tracks and multi-layered gaskets to ensure zero leakage even during driving rain, complying with BS 6375 Pt 1 standards.
Security & Thermal Efficiency
Security is anchored by PAS 24 compliance and 3-star TS007 cylinders, featuring multi-point locking with steel shoot-bolts. Furthermore, ensure the use of high-strength aluminum alloys with thermal breaks; this prevents conduction failure, reduces energy costs, and eliminates internal condensation—a key selling point for modern green building projects.
To simplify the evaluation process, utilize the following performance metrics as your procurement baseline:
| Metric | Description | Target Value |
|---|---|---|
| Wind Load Resistance | Ability of track/rollers to handle pressure without deformation. | 1200Pa Class A3 (exceeds standard); DP-70 (165 mph winds). |
| Security Standards | Ensures robust rollers/hinges resist forced entry. | PAS 24 compliant; 3-star TS007 cylinders. |
| Weather Performance | Track seals against water/wind; rebated bottom tracks for watertightness. | 600Pa Class 9A watertightness; BS 6375 Pt 1. |
| Material Strength | Aluminum tracks resist warping/corrosion; thermal breaks prevent conduction failure. | Hurricane-rated; high-strength alloys. |

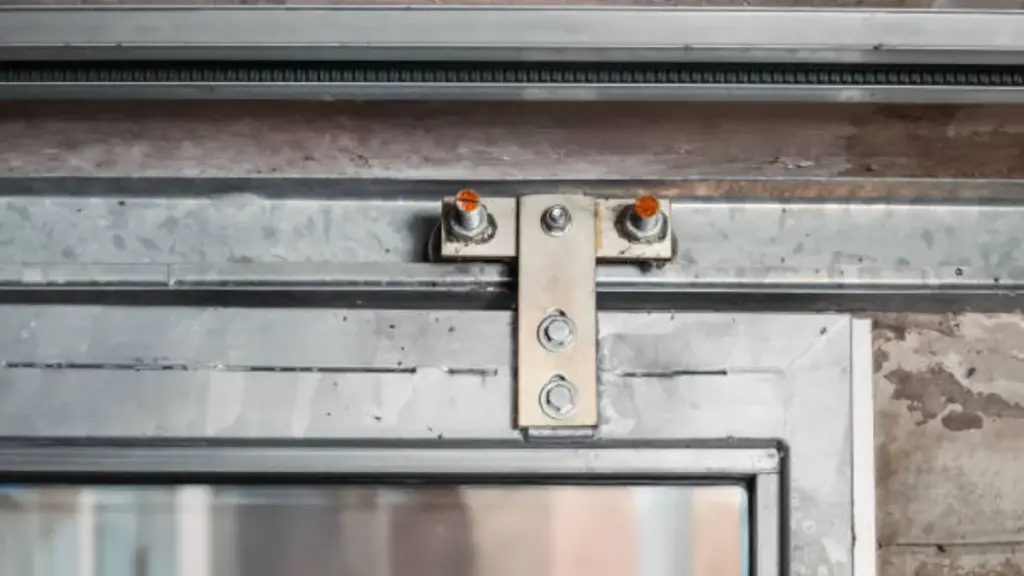

How to Evaluate the Track and Roller System for Durability?
The track and roller assembly is the “engine” of a folding door. For B2B projects, hardware failure is the leading cause of costly post-installation callbacks. Durability must be evaluated through both precision engineering and tactile performance.
Precision Movement & Load Distribution
A high-performance system should offer weighted, silent gliding without rattling or excessive force. Look for acetal or stainless steel rollers equipped with sealed SKF bearings and hardened axles. These components ensure the system can support panel weights exceeding 220 lbs (100 kg) while maintaining low-friction operation over thousands of cycles.
Corrosion Resistance & Security
In coastal or high-traffic environments, hardware must be 316 marine-grade stainless steel or powder-coated aluminum to resist oxidation. Ensure the system features concealed or anti-lift hinges and reinforced housings, meeting PAS 24 or DP-70 standards. These prevent the panels from being pried or lifted from the tracks—a critical security requirement.
Maintenance-First Design
Evaluate the tracks for integrated drainage channels and easy-access debris guards. High-durability systems prioritize minimal upkeep, requiring only seasonal lubrication of rollers and clearing of weep holes to ensure decades of reliable service.
Unlock Premium Performance: Advanced Aluminum Door & Window Systems
How Does Panel Size and Quantity Affect Stability and Cost?
In the world of high-performance aluminum systems, panel size is more than a design preference—it is a critical engineering variable. The configuration directly dictates structural deflection, operational friction, and total project expenditure.
Structural Constraints & Manufacturer Limits
High-performance systems typically cap panel widths at 35–48 inches (900–1200 mm) and heights up to 144 inches (3650 mm). Pushing these limits increases the deflection risk under wind load. As panels grow larger, they require reinforced profiles and specialized glass, which is why understanding an is essential for maintaining both spatial harmony and structural safety.
The “Cost-Efficiency Curve”
Pricing for premium aluminum systems in 2026 generally ranges from $500 to $3,500+ per linear foot. It depends on size, configuration, panel count, hardware, and glazing choices.
- Fewer, Larger Panels: Reduce vertical sightlines but require expensive, high-spec glass to manage increased weight.
- More, Smaller Panels: Utilize standard glass but increase costs through additional hardware sets and higher installation labor.
- The Sweet Spot: Project data suggests that mid-range panel sizes often yield the best ROI. For a deeper look at budget allocation, refer to our .
Folding vs. Sliding: Cost & Value Comparison
Choosing between these two systems depends on your project’s goal for aperture versus budget. While folding doors provide a 100% clear opening, sliding doors often offer better cost-efficiency for massive spans. You can explore this further in our guide on .
| System Type | Standard Cost (Est. 2026) | Key Advantage | Best Application |
|---|---|---|---|
| Standard Folding | $1,500 – $2,000 / lin. ft | 100% Aperture | Residential Patios / Restaurants |
| Premium/Heavy-Duty Folding | $2,000 – $3,500+ / lin. ft | Hurricane-rated / Over-height | Coastal Commercial Projects |
| Multi-Slide Systems | $500 – $1,500 / lin. ft | Ease of Operation / Views | Large Scale Balconies |
| Lift-and-Slide (Premium) | $1,500 – $2,500 / lin. ft | Superior Weather Sealing | Luxury Villas / High-wind areas |

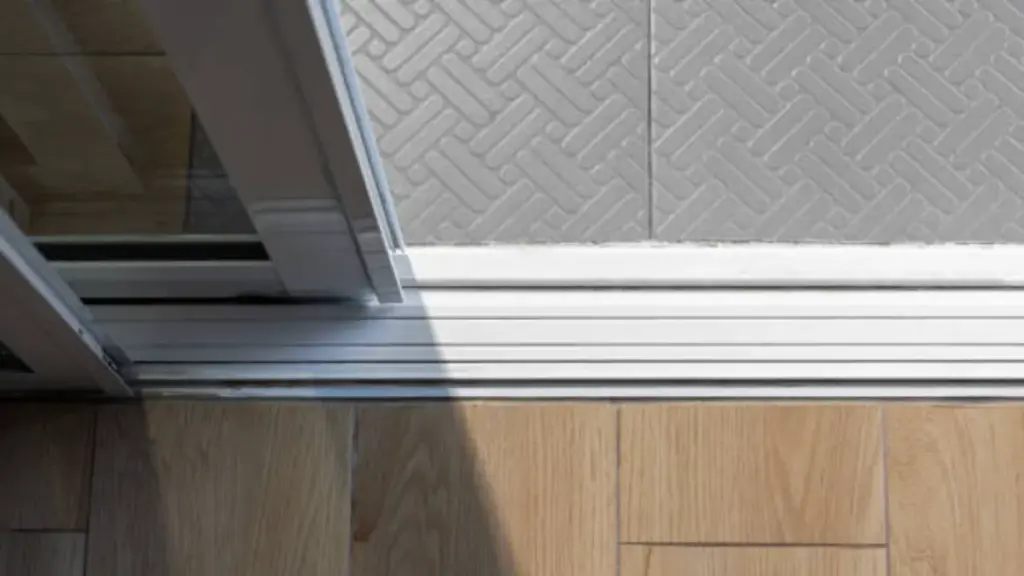

How to Achieve Seamless Transitions with Threshold and Drain Design?
Achieving a true flush transition is one of the most technically demanding aspects of a high-performance aluminum folding door installation. It requires a delicate balance between aesthetic minimalism, accessibility standards, and aggressive water management.
Flush Thresholds and Accessibility
A seamless transition aligns the interior and exterior floor levels, creating a cohesive living space. For commercial projects, specifying an ADA-compliant threshold or a low-profile rebated track is essential. These systems minimize trip hazards while maintaining structural integrity. However, a zero-step transition must be paired with precision-engineered thermal breaks to prevent cold bridging and internal condensation.
Advanced Hidden Drainage Systems
To prevent water ingress in flush setups, we utilize two primary drainage strategies:
- Concealed Drainage Channels: Instead of visible weep holes, water passes through the thermal break into a hidden drainage channel beneath the sill.
- Linear Slot Drains: These are integrated directly at the door line to intercept heavy runoff.
Proper execution depends on the sub-sill waterproofing and the pitch of the exterior paving. For complex configurations, following a professional ensures that the track alignment and drainage slopes are perfectly synchronized to prevent structural leaks.
Weather Performance in Exposed Locations
In high-exposure zones, a fully flush threshold may reduce the system’s air and water tightness ratings. We recommend rebated weather-tight tracks for coastal projects, which provide a physical upstand against driving rain while still offering a low-profile aesthetic. Regular maintenance of the anti-debris brush seals and clearing of the drainage slots are vital for sustained long-term performance.
Final Thoughts
Achieving premium performance in aluminum folding doors requires a calculated balance between rigorous engineering standards and site-specific configurations. By prioritizing high-grade hardware, thermal efficiency, and precision drainage, project buyers can ensure structural stability and seamless operation across diverse climates.
For superior results, partner with OPUOMEN. We provide meticulously engineered aluminum solutions backed by integrated manufacturing and global compliance to meet your project’s precise demands. or contact our technical team today for a tailored quote.
Frequently Asked Questions
How many locking points are needed for security?
Go for a multi-point system with 8 locking points. High-security setups use steel shoot-bolts and hooks to meet PAS 24 or Florida HVHZ standards, ensuring the frame remains pry-resistant against forced entry.
How long does the hardware last before maintenance?
Quality hardware like acetal rollers with SKF bearings often carries a 10-year warranty. While built for durability, you should still clear track debris and lightly lubricate hinges seasonally to maintain a smooth, silent glide.
Can I include a single access door for daily use?
Yes. You can configure one panel as an “everyday access door” (e.g., a 3+1 setup). This lets you enter or exit like a standard swing door without unfolding the entire glass wall every time.
Inward vs. Outward opening: Which is better?
Outward opening is the standard for saving interior floor space. Inward opening works best for tight balconies or high-exposure areas, though it can be more challenging to waterproof against heavy driving rain.
